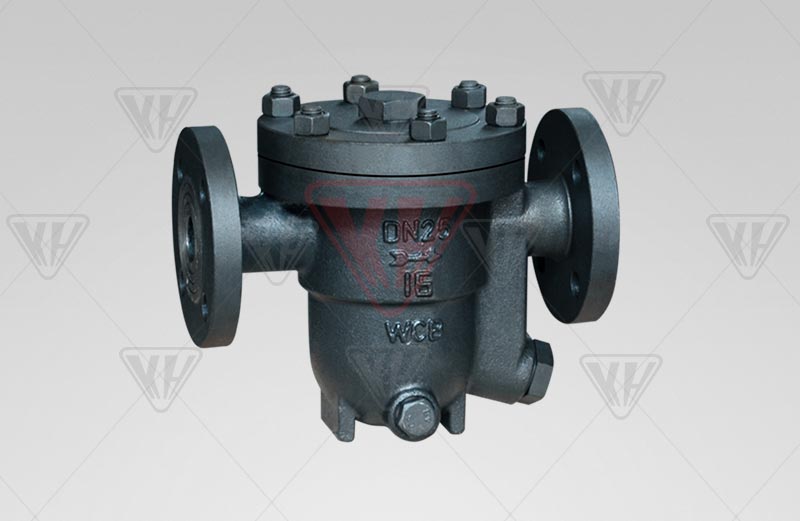

Thermostatic Free Float Steam Traps
Model: CS41H
Nominal diameter: DN15 ~ 50mm
Nominal: PN0.01 ~ 1.6MPa
Operating temperature: ≤350 ℃
Main material: Forged steel, stainless steel, titanium steel, chromium molybdenum steel, low temperature steel
Operation: manual
Design specifications : GB / T 9093
Construction length: GB / T 12250
Threaded connection: ISO 228
Flange connection: JB / T 79, GB 9113, ANSI B16.34
Test and Inspection: GB / T 13927
Product details

Thermostatic free float steam trap is an automatic valve, especially for low pressure, low displacement and high temperature stability requirements, should not be stored with condensing water steam equipment is more applicable. Free float steam trap's main working principle is based on the principle of buoyancy, so that the valve body float with the water level changes for lifting movements to achieve the valve opening and closing, that is, the role of drainage gas barrier. Widely used in a variety of steam pipes.

Structural features
1, continuous drainage, stable performance, large displacement, small amount of leakage.
2, to row continuous saturated water, to make the device less stagnant water condensate, heating fast, heating temperature stable.
3, automatic exhaust air device, no gas lock phenomenon, work balance, no noise.



The main dimensions

 Product number

Nominal diameter

L

D

T

G

C

n-φd

H

CS41H-150Lb

1/2 "

15

210

89

12

35

60.5

4-15

175

3/4 "

20

210

98

12

43

70

4-15

175

1"

25

210

108

12

51

79.5

4-15

175

CS41H-300Lb

1/2 "

15

210

95

15

35

66.5

4-15

175

3/4 "

20

210

117

16

43

82.5

4-19

175

1"

25

210

124

18

51

89

4-19

175
