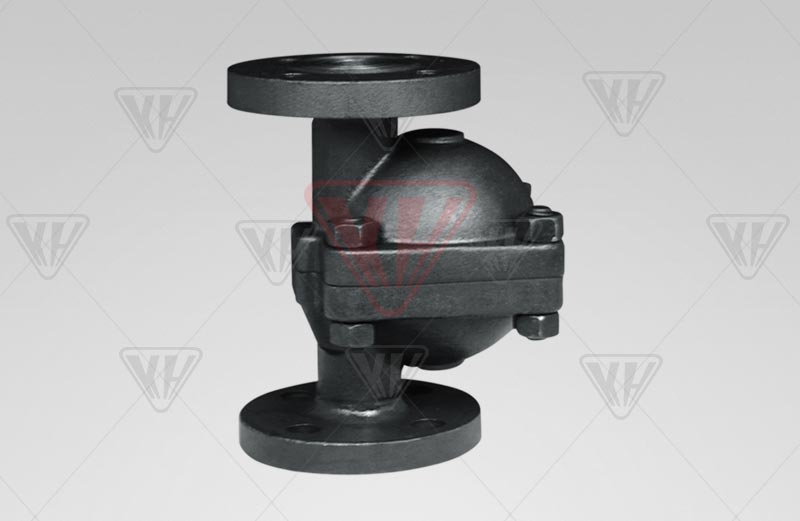

Vertical Free Float Steam Traps
Model: CS41H
Medium temperature: 210 ℃ ( 425/600 ℃) The
maximum allowable pressure PMA: 1.6MPa (2.5MPa)
Minimum working pressure PMNO: 0.02MPa
No-load leakage rate RSN: ≤0.1%
Undercooling △ T: ≤ 3 ℃
Maximum back pressure rate RMBP: ≥85 ℃
Design specifications: GB / T 9093
Structure length: GB / T 12250
Threaded connection: ISO 228
Flange connection: JB / T 79, GB 9113, ANSI B16.34
Test and inspection: GB / T 13927
Product details

Vertical Free Float Traps Product Features

1, Unaffected by the pressure, temperature and condensate flow fluctuations, continuous drainage, water that is row, stable performance, minimum supercooling is 0 ℃, can make the heating equipment to achieve good work efficiency.

2, the trap can row row of saturated water, to make the device less stagnant water condensate, heating fast, heating temperature stable.

3, the trap automatic exhaust air device, no gas lock phenomenon, work balance without noise.

4, can be vertically installed on the steam pipe, easy to use.


Vertical free-float trap works

CS11H-3NL / CS41H-3NL Vertical Free Float Trap has a simple structure with only a finely ground stainless steel hollow float. It is both a float and an opening and closing piece, with no wearing parts and a long service life. When the device is started, air and low temperature condensate will appear in the pipe. The bimetal automatically discharges the air component to push the ball away from the valve seat. The valve opens to remove the non-condensable gas, the low temperature condensate flows into the trap, the float rises and the condensate rapidly emission. The device quickly raise the temperature, the temperature inside the pipe rises to the saturation temperature, the bimetal automatically exhaust air components temperature variants straight; steam trap into normal operation, the float with the liquid level to adjust the valve hole flow; when the condensate to stop When entering, the float flows toward the valve seat with the medium and closes the valve. Vertical free-float steam trap valve seat is always below the level to form a water seal, no steam leaks.


Model

Path
       (mm)

Connection method

Dimensions

H

L

CS11H-16-I L
       CS11H-16C-IL

15

Thread

120

84

20

120

84

25

120

84

CS41H-16-I L
       CS41H-16C-IL

15

Flange

150

84

20

150

84

25

150

84

CS11H-16-IIL
       CS11H-16C-IIL

15

Thread

160

   170

20

160

170

25

160

 170

CS41H-16-IIL
       CS41H-16C-IIL

15

Flange

210

195

20

210

195

25

210

195
