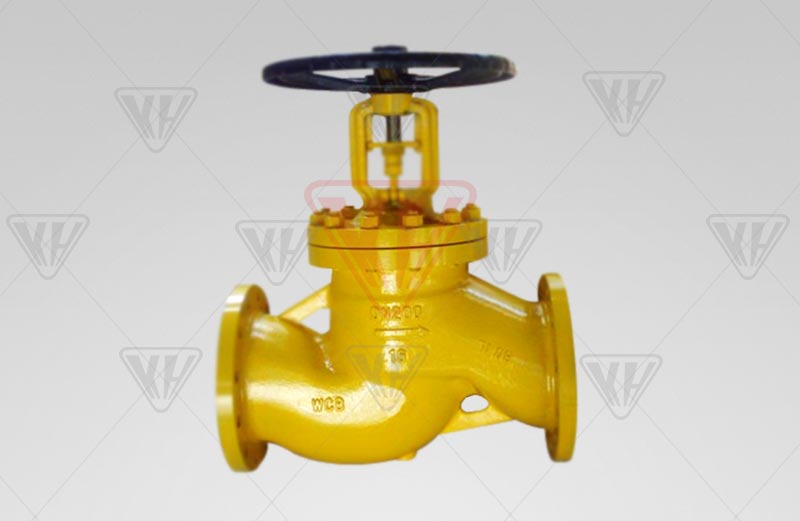

Chlorine dedicated globe valve
Model: LWJ41F
Nominal diameter: DN15~400mm, NPS1 / 2 " ~ 12"
Nominal: PN1.6 ~ 4.0MPa, Class150 ~ 300Lb
Medium: chlorine, chlorine
Temperature: -40 ~ 150 ℃
Drive: manual, pneumatic, electric
Design criteria: GB / T12235-2007
Length of the structure: GB / T12221-2005
Connection flange: HG / T20592-97
Experiments and testing: JB / T9092-99
Product details

Structural features:
 1, Hydraulically formed bellows form the first seal to ensure zero leakage stem seal.
 2, packing box multi-grade PTFE packing in the bellows formed on the second seal, an increase of the reliability of the seal.
 3, the flange with groove seal structure, even in the pipeline pressure fluctuations in the case, to ensure reliable sealing flange.
 4, sealing pair matching structure type cone, flat, automatic seal compensation to achieve double insurance effect, stable sealing performance, no adhesive wear and long service life.


The main parts and materials:

Serial number Part Name material
1 Body Nickel-containing high-silicon corrosion-resistant steel
2 cap Nickel-containing high-silicon corrosion-resistant steel
3 Valve stem Chrome stainless steel
4 Valve sealing surface Plasma spray welding, corrosion resistant alloy surfacing
5 Seat sealing surface Compression plastic sintered PTFE
6 filler Teflon
7 Gasket Teflon
8 Corrugated pipe 316L, C-276



Features:
 1, according to the specific characteristics of the media, chlorine bellows valve for the valve body material selection of corrosion-resistant alloy, chlorine resistance, liquid chlorine corrosion, low temperature can be -40 ℃, to ensure maximum operating conditions conditions.
 2, Hydraulically formed bellows form the first seal to ensure that the stem seals zero leakage.
 3, stuffing box multi-grade PTFE packing in the bellows formed on the second, increasing the reliability of the seal.
 4, the flange with tongue and groove seal structure, even in the case of pipeline pressure fluctuations, to ensure reliable flange seal.
 5, non-rotating stem to prevent the bellows to reverse, to ensure that the valve longer cycle life.
 6, the sealing pair form the structure of the cone, flat, sealed automatic compensation, to double the effect of insurance, sealing performance and stability, no adhesive wear and long service life.



Main dimensions:

Pressure Level PN16
caliber 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980
H 195 200 220 225 235 250 260 265 370 400 515 550 600 630 680
Do 130 130 130 130 150 150 180 180 200 200 400 450 450 500 500
Weight (Kg) 4 4.5 5 7 9 12.5 18 23 41 54 90 160 260 410 610
