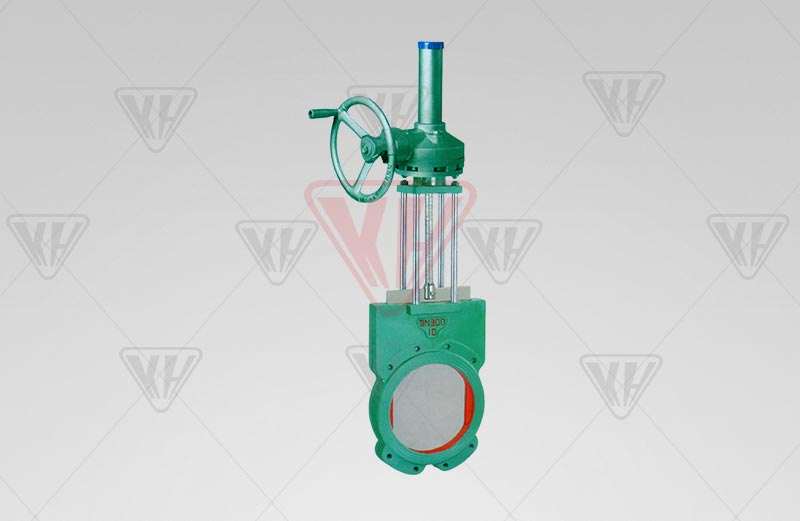

Bevel gear slurry valve
Model: PZ573X
Nominal Diameter: NPS 2 "~ 32", DN50 ~ 800mm
Nominal pressure: CL150, PN1.0 ~ 16.0MPa
Working temperature: -10 ℃ ~ 120 ℃
Design criteria: API 600 , API6D, ASME B16.34, GB / T 12234
Construction Length: ASME B16.10, API6D, GB / T 12221
Connection Standards: ASME B16.5, ASME B16.47, GB / T 9113, JB / T 79, HG / T 20592
Pressure Test: API 598, GB / T 13927, JB / T 9092
Pressure - Temperature Rating: ASME B16.34, GB / T 12224
Product details

[Basic Information]

       Bevel gear slurry valve Knife gate valve has the advantages of simple and compact structure, reasonable design, light materials, reliable sealing, light and flexible operation, small size, smooth passage, small flow resistance, light weight, easy installation, easy disassembly, etc., Pressure 1.0MPa-2.5MPa, the use of temperature -29-650 ℃ normal work.


[Main shape and connection size]

MPa

DN

L

D

D1

H

NM

1.0

50

40

125

95

425

4-M16

65

40

145

 110

475

4-M16

80

50

 160

 127

505

8-M16

100

50 180

 149

580

8-M16

125

 50

210

 174

655

8-M16

150

 60

240

 199

745

8-M20

200

 60

295

 250

890

8-M20

250

 70

350

 310

1125

12-M20

300

 70

400 360

1325

12-M20

350

96 460 416

 1480

16-M20

400

100 515 466

 1645

16-M24
